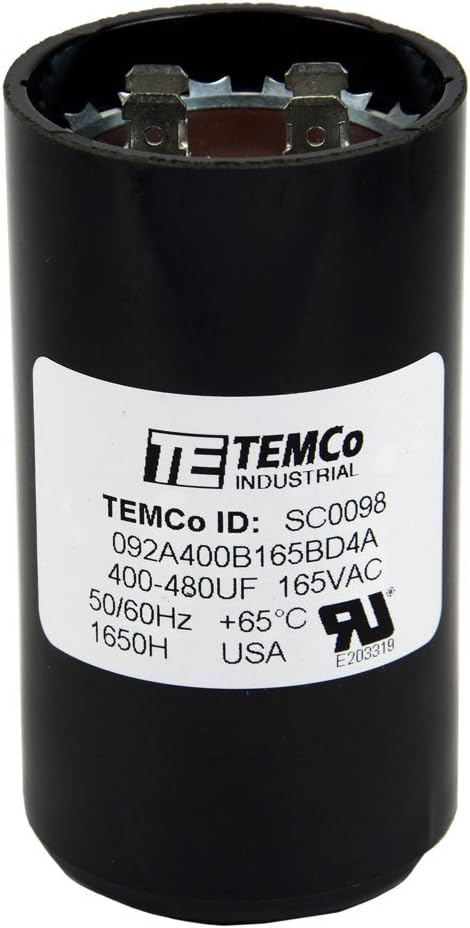

5 Pack TEMCo 400-480 uF MFD CD60 Start Capacitor 165V AC Round | 50/60 Hz Motor Start Capacitor for HVAC, Compressor, Pump
Product details
| Management number | 221111099 | Release Date | 2026/05/03 | List Price | $20.43 | Model Number | 221111099 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
TEMCo's AC Electric Motor Start Capacitors are designed specifically for replacement of OEM single phase motor capacitors as well as other applications. These units are housed in a rugged phenolic resin case. All units are PCB-free, UL rated E492933, Electrolytic Oil filled.
- 400-480 uF, 165 VAC, 50/60 Hz, -40° C to +65° C (-40° F to +149° F) Temperature Operating Range
- 1.78 inches in diameter, 3.33 inches overall height
- PCB-free, UL rated E492933, Electrolytic Oil filled.

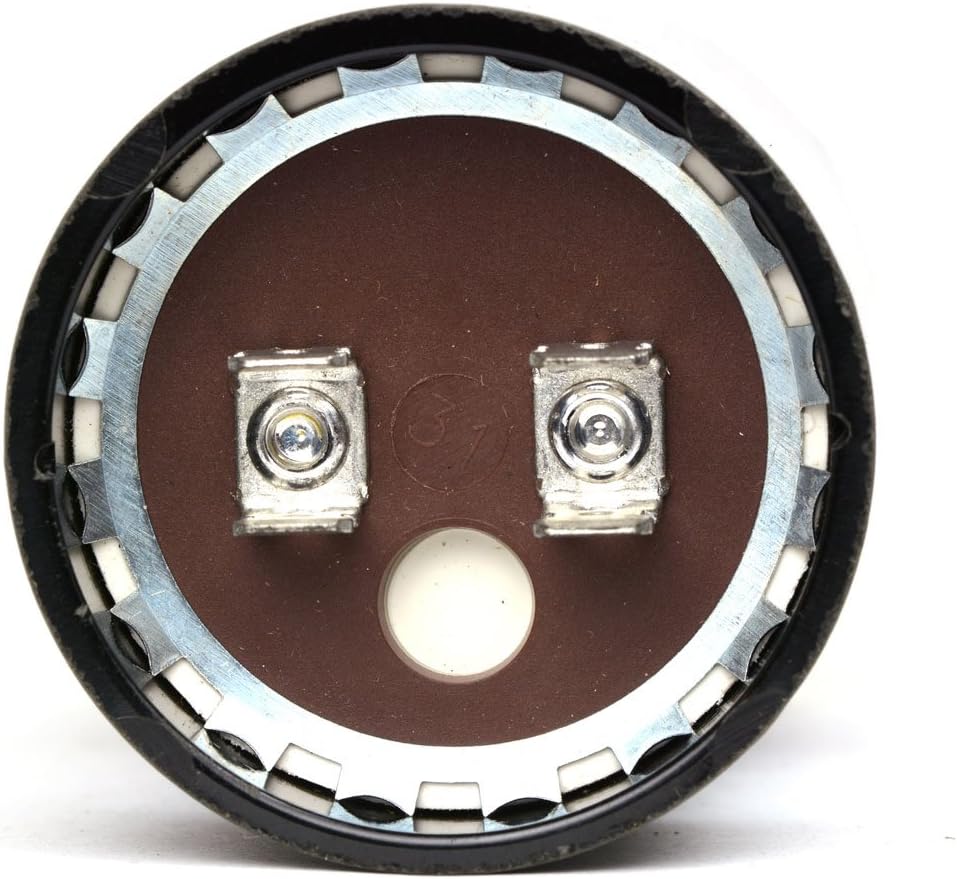

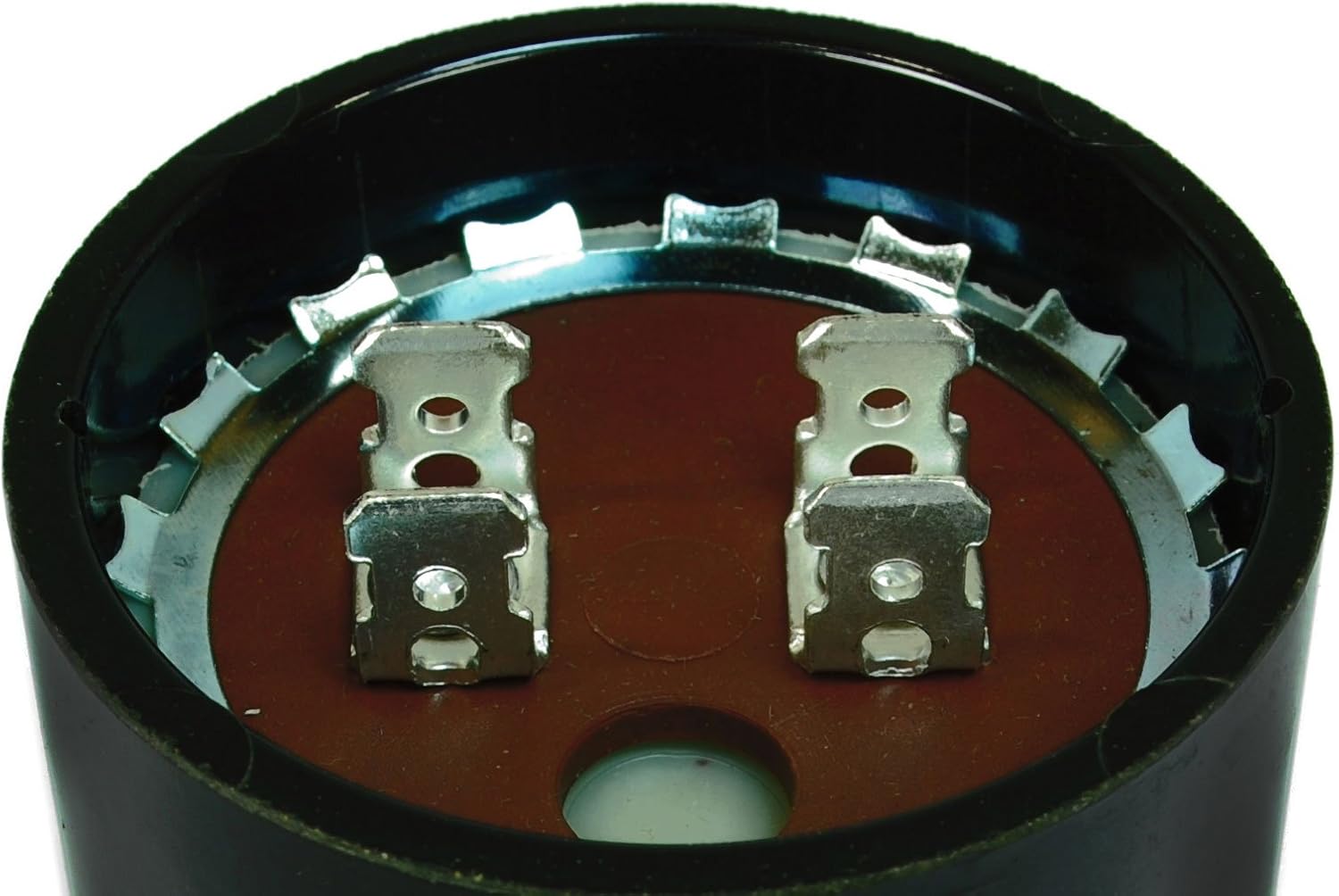

- Rugged phenolic resin case, 1/4" Quick Disconnect Terminals (Standard)
- 5 Year Warranty. Designed for replacement of OEM single phase motor and gear motor applications.
| Model | SC0099 (5x SC0098) |
|---|---|
| Brand Name | TEMCo Industrial |
| Item Shape | Round |
| Capacitance | 480 Microfarad |
| Item Weight | 3.5 Pounds |
| Part Number | SC0099 (5x SC0098) |
| Manufacturer | TEMCo Industrial |
| Material Type | Plastic |
| Mounting Type | Snap-In Mount |
| Maximum Voltage | 165 Volts (AC) |
| Operating Voltage | 165 Volts (AC) |
| Item Dimensions W x H | 1.78"W x 3.33"H |
| Upper Temperature Rating | 149 Degrees Fahrenheit |
